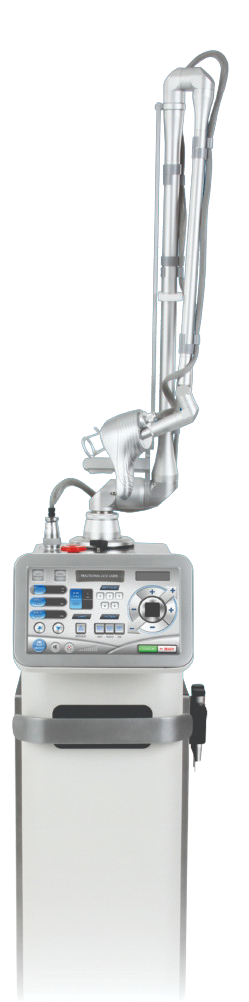

BIOXEL
BIOXEL, a leading CO2 fractional laser technology by AML is a revolutionary system tailored to address a wide variety of concerns.
With cutting-edge innovation and precision design, BIOXEL transforms the field across six key aesthetic and medical applications: aesthetic surgical, aesthetic fractional, general fractional, vaginal, dental and ENT.
Each application benefits from features that enhance treatment outcomes, reduce downtime, and maximize results, making BIOXEL a top choice for both aesthetic and medical professionals.
Technical Specifications
| General Specifications | |
|---|---|
| Laser Medium | CO2 (Glass Tube) |
| Wavelength | 10,600 nm |
| Guide Beam | 650 nm < 5 mW |
| Power | 1-40 W |
| Aiming Beam | Diode 650 nm |
| Cooling | Water |
| Dimension ($W*L*H$) | 440 mm (W) x 480 mm (L) x 1055 mm (H) |
| Weight | 52 Kg |
| Handpieces | 50 mm / 100 mm (standard) Dental / ENT (optional) |
| Operation Mode | CW / Normal Pulse / Super Pulse Super Pulse Continuous / Ultra Pulse Smart Protocol (General Surgery / Dental Surgery) |
| Pulse Duration | Continuous: 2-30 ms Ultra Pulse: 90-900 µs Super Pulse: 10-4.0 ms Normal Pulse: 5-20 ms |
| Repeat Time | Off, 2/500 ms adjustable, 5 ms, 10 ms, 30 ms, 50 ms, 70 ms, 100 ms, 250 ms, 500 ms |
| Handpieces | Fractional HP (galvanic motor) Vaginal Rejuvenation HP (optional) |
| Beam Mode | Ultra Pulse |
| Density Level | 1-23 steps ($x, y$, line); 9-4489 dots |
| Operation Mode | Fractional Mode Low Pain Fractional Mode |
| Beam Pattern | Array, Grid, Random |
| Beam Size | $2x2 - 20x20mm$ |
| Beam Shape | Square, Triangle, Octagon, Circle |
| Depth Level | 1-5 steps |
| Repeat Time | Off, 0.5, 1, 1.5, 2, 2.5 ms |
Clinical Indication
Aesthetic Surgical
- Corn, Warts
- Syringoma
Aesthetic Fractional
- Acne Scar, Wrinkle, Large Pore
- Skin Resurfacing, Stretch Mark
- Skin Tightening, Laser Peeling
- Age Spot
General Surgical
- Excision, Incision, Phimosiectomy
- Tumor Elimination
- Hemorrhoids
Vaginal
- Pudenda
- Genitourinary Syndrome of Menopause
- Vaginal Rejuvenation
- Vaginal Atrophy
- Stress Urinary Incontinence
Dental
- Implants Operation
- Hypersensitivity, Hemostasis
- Sterilization in Root Canal
ENT
- Allergic Rhinitis, Snoring

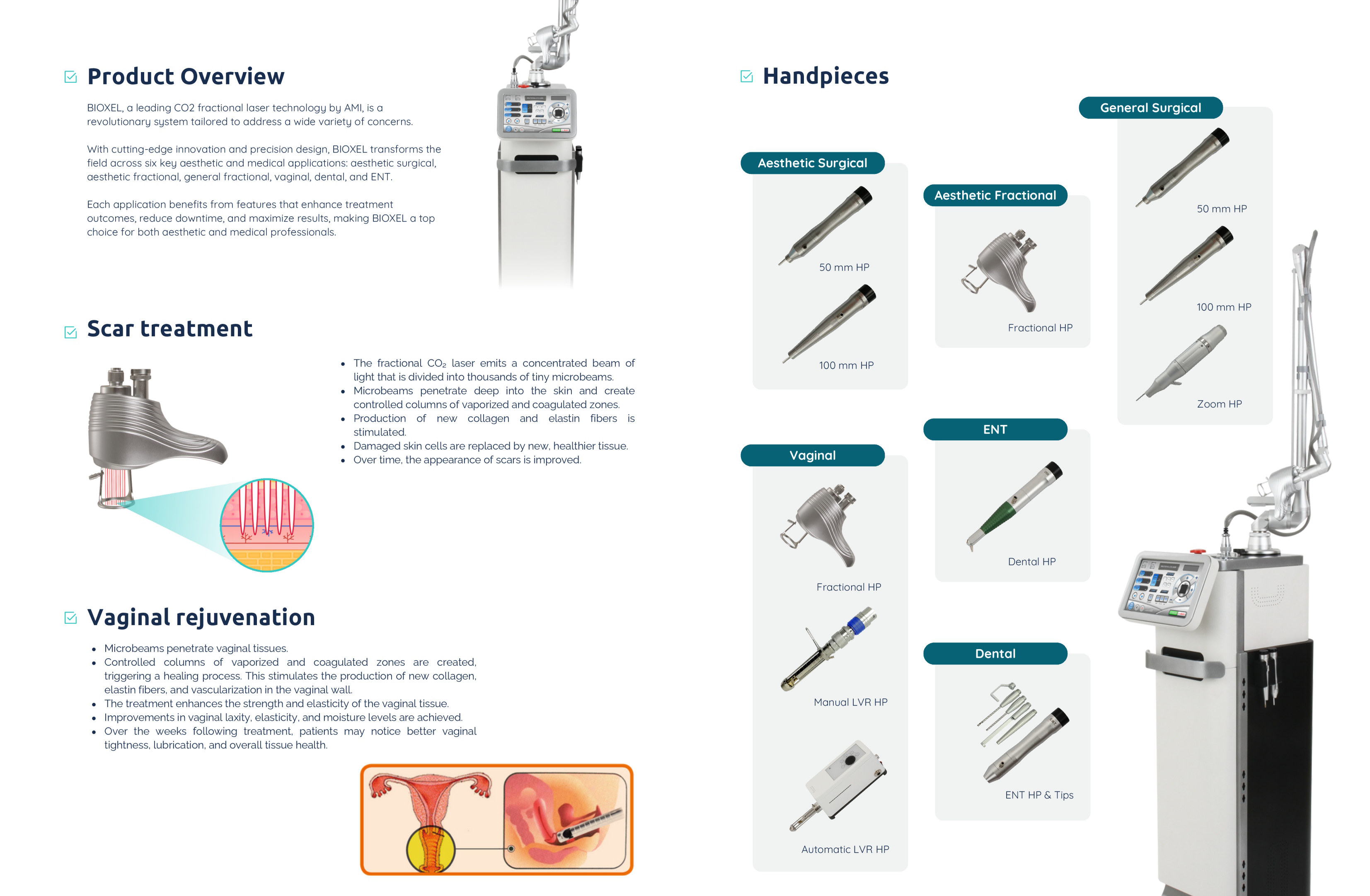

50 mm handpiece,
100 mm handpiece
Fractional handpiece
50 mm handpiece,
100 mm handpiece,
Zoom handpiece
Manual LVR handpiece,
Automatic LVR handpiece,
Fractional handpiece
Dental handpiece
ENT handpiece and tips
