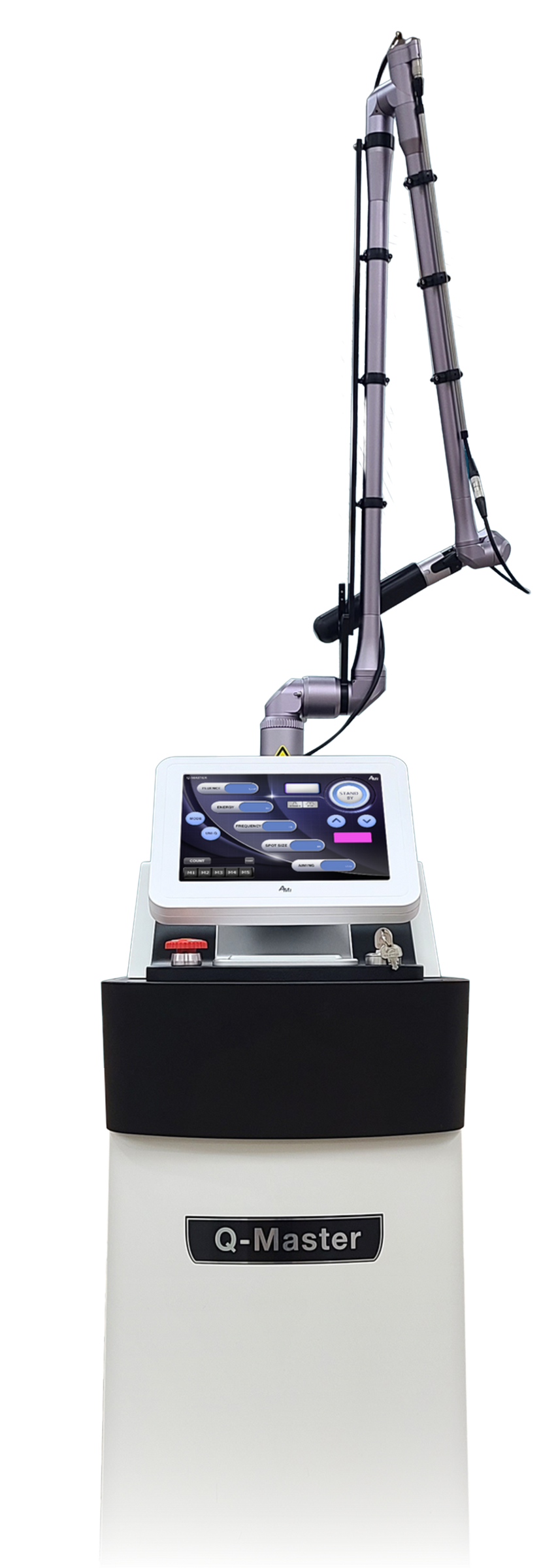

Q-MASTER / Q-MASTER PLUS

Q-switched & Long-pulsed Nd:YAG Laser

Beam profile

Flat top-hat beam profile

PTP mode

Consecutive dual pulses up to 1.8 J

Fractional HP

Non-ablative skin rejuvenation

7 handpieces*

Dual Zoom, Fractional, 585/595/650/660 HPs

6 wavelengths

1064, 532, 585, 595, 650, 660

Long-pulse*

1064 nm long-pulsed mode for more indications

Clinical Indication

Epidermal pigmented lesions
  • Solar Lentigo / Freckle
  • Seborrheic Keratosis
  • Café-au-lait / Dyschromia
Toning
  • Melasma / PIH
Vascular lesion*
  • Telangiectasia / Blue vascular
  • Facial flushing / Inflammatory acne
  • Rosacea / Nevus flammeus
  • Hemangioma / Spider veins
Dermal pigmented lesions
  • Nevus of Ota / ABNOM
Rejuvenation
  • Wrinkles / Enlarged pores
  • Scars
Tattoo removal
  • —
Hair removal*
  • —

Technical Specification

Device Q-MASTER Q-MASTER PLUS
Laser Medium Nd:YAG Nd:YAG
Wavelengths 1064, 532, 585, 595, 650, 660 nm 1064, 532, 585, 595, 650, 660 nm
Pulse Energy Max 1.0 J @ 1064 nm (single)
Max 1.8 J @ 1064 nm (double)
Max 400 mJ @ 532 nm
Max 1.6 J @ 1064 nm (long pulse)
Max 2.0 J @ 585/595 nm (dye)
Max 250 mJ @ 532 nm (fractional)
Max 50 mJ @ 532 nm (single)
Max 20 mJ @ 585 nm 		Max 1.5 J @ 1064 nm (single)
Max 1.8 J @ 1064 nm (double)
Max 450 mJ @ 532 nm
Max 1.6 J @ 1064 nm (long pulse)
Max 2.0 J @ 585/595 nm (dye)
Max 250 mJ @ 532 nm (fractional)
Max 50 mJ @ 532 nm (single)
Max 20 mJ @ 585 nm
Pulse Duration 5 ns & 130 µs 5–8 ns & 130 µs / Max 30 ms
Spot Size 2–10 mm (1064/532 nm)
2 mm & 5/8/10 mm (585/595/650/660 nm) 		2–10 mm (1064/532 nm)
2 mm & 5/8/10 mm (585/595/650/660 nm)
Repetition Rate 2–10 Hz @ 1064/532 nm
1–2 Hz @ 585/595/650/660 nm 		2–10 Hz @ 1064/532 nm
1–2 Hz @ 585/595/650/660 nm
Aiming Beam Diode 650 nm Diode 650 nm
Handpieces Standard: 2–10 mm Zoom
Optional: Fractional HP, 585/595/650/660 Dye 		Standard: 2–10 mm Zoom
Optional: Fractional HP, 585/595/650/660 Dye
Dimension (W×L×H) 900 mm (W) × 450 mm (L) × 1100 mm (H) 900 mm (W) × 450 mm (L) × 1150 mm (H)
Weight 95 Kg 115 Kg

Product Overview

Q-MASTER and Q-MASTER PLUS are Q-switched Nd YAG lasers by AMI. They provide substantial power output specifically for pigment and tattoo removal procedures, ensuring consistent clinical outcomes. The uniform distribution of energy enhances bath safety and effectiveness by minimizing the risk of skin thermal injury.

Additionally, PTP mode is designed to enhance patient comfort by reducing pain and accelerating tissue regeneration compared to the traditional single-pulse mode.

In Q-MASTER PLUS, the additional long-pulsed mode extends its capabilities to not only hair removal but also the treatment of vascular lesions.

Flat top-hat beam profile

Both the G-MASTER and O-MASTER PLUS feature a flat top-hat beem profite, guaranteeing uniform and consistent energy distribution to the target area

Dual-pulse with less skin damage (PTP)

  • Emits consecutive dual pulses with a maximum energy of 1.8 J
  • Delivers twice the number of pulises compared to the single-pulse mods with each pulse containing nearly half the energy
  • Minimizes beatment discomfort and avots damaging the surrounding normal skin tissues a common issue with the single-pulse mode

1064 nm long-pulsed mode for more indications

  • Only available in Q-MASTER PLUS
  • Additional long-pulsed mode
  • Used for both hair removal and the treatment of vascular lesions

Non-ablative skin rejuvenation

  • Features a hexagonal fractional lens.
  • Generates a grid of 360 micro-spots with exceptionally high intensity.
  • Induces laser-induced optical breakdown (ILIOB) within the skin
  • Triggers skin regeneration and stimulates dermal remodeling

Dual-pulse with less skin damage (PTP)

  • Emits consecutive dual pulses with a maximum energy of 1.8 J
  • Delivers twice the number of pulses compared to the single-pulse mode, with each pulse containing nearly half the energy
  • Minimizes treatment discomfort and avoids damaging the surrounding normal skin tissues, a common issue with the single-pulse mode

Various handpieces

With the diverse selection of handpieces provided try MASTER and Q-MASTER PLUS, physicians can administer freatments to patients at the optimal settings

Needle tip is an accessory
